Commercial Grade 5052 Aluminum Plate , Customized Aircraft Grade Aluminum Sheet

I'm Online Chat Now

Commercial Grade 5052 Aluminum Plate , Customized Aircraft Grade Aluminum Sheet

China Commercial Grade 5052 Aluminum Plate , Customized Aircraft Grade Aluminum Sheet supplier
Commercial Grade 5052 Aluminum Plate , Customized Aircraft Grade Aluminum Sheet supplier Commercial Grade 5052 Aluminum Plate , Customized Aircraft Grade Aluminum Sheet supplier Commercial Grade 5052 Aluminum Plate , Customized Aircraft Grade Aluminum Sheet supplier

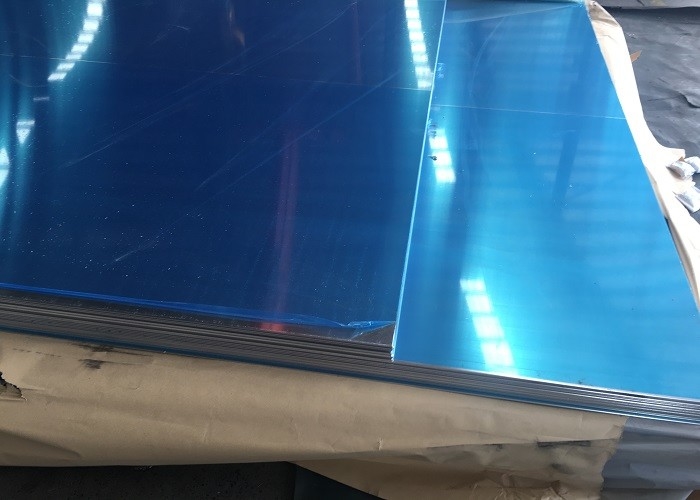

Large Image :  Commercial Grade 5052 Aluminum Plate , Customized Aircraft Grade Aluminum Sheet

Product Details:

Place of Origin: China
Brand Name: RuiYi metal
Certification: ISO9001
Model Number: 5052

Payment & Shipping Terms:

Minimum Order Quantity: 5 TON
Price: US$2400-US$2900 / ton
Packaging Details: standard package
Delivery Time: 45 days
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Alloy Grade: 5052 Aluminum Sheet Shape: Plain ,Embossed, Checkered
Thickness: 1.25″-16″ Width: 36″-96″
Length: 96″, 120″, 144″, 240″, 288″, 260″ Patterns: Diamond, 3 Bars, 5 Bars
Application: Truck Box, Trailers, Aircraft, Aerospace

Good quality cheap price Commercial Grade 1050 aircraft aluminum sheet aerospace plate



Compared with ordinary aluminum alloys, aluminum alloys for aircraft have higher requirements on strength, hardness, toughness, fatigue resistance and plasticity.



There are many kinds of aluminum alloys used on airplanes.



1. Hard aluminum: aluminum magnesium copper alloy. The most widely used aluminum alloy in the aviation industry. Commonly used 2024, 2A12, 2017A, strength, toughness, fatigue resistance, good plasticity. Used to make skins, partitions, ribs, etc.

2, super hard aluminum: aluminum zinc magnesium copper alloy. Commonly used 7075, 7A09, high strength limit and high yield strength, with a large load, used to make the upper wing skin and girders on the wing.

3, anti-rust aluminum alloy: commonly used aluminum-magnesium alloy 5A02, 5A06, 5B05. It has high corrosion resistance, fatigue resistance, good plasticity and weldability. Used to make fuel tanks, oil pipes, etc.

4, forged aluminum alloy, commonly used 6A02, high hardness, with good corrosion resistance. Manufacture of engine parts, joints, etc.

5, casting aluminum alloy, small specific gravity, high corrosion resistance, heat resistance, manufacturing engine casings and so on.

The biggest difference between air travel materials and ordinary aluminum profiles is the mechanical properties. The 7-series aluminum alloy is the highest hardness value of all aluminum alloys, so it is suitable for aerospace applications. The 6 series aluminum alloy has medium hardness and can basically meet the needs of production and life.



The second difference is that the cost is different. The higher the hardness of the aluminum profile, the more difficult it is to form, so the cost of the aerospace aluminum profile is very high. Our ordinary 6-series aluminum alloy (the most commonly used 6063, 6061, etc.) has medium hardness, easy extrusion and low production cost.

The third difference is that aviation aluminum profiles cannot be welded and can only be connected by other means. Ordinary buildings, industrial aluminum profiles can be welded, so the application field is wider.



The fourth difference is also very large, that is, corrosion resistance, the corrosion resistance of the 7-series aluminum alloy is very poor, so the surface must be treated by special processes, which increases the cost. The 6-series aluminum alloy itself has certain corrosion resistance, and if the surface is anodized, the corrosion resistance can be greatly improved.

RuiYi Metal supplier trade various kinds of alloy grade like 3003,5052,6061,1050,1100 with competitive price and fast delivery time and our aluminum diamond plate sheet or diamond aluminum coils is very suitable for stairs steps, interior floor decoration, anti-slip floor plate, and truck box or carrier.

Below specification of aluminum plate diamond patterns is very popular in America market

  • Thickness 1.25″-16″
  • Width 36″-96″
  • Length 96″, 120″, 144″, 240″, 288″, 260″
  • Diamond tread and 5 bar tread plate


Commercial Grade 5052 Aluminum Plate , Customized Aircraft Grade Aluminum Sheet

Commercial Grade 5052 Aluminum Plate , Customized Aircraft Grade Aluminum Sheet

                                     Chemical Analysis of aluminum alloy Plate
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Al
1050 0.25 0.4 0.05 0.05 0.05 - - 0.05 0.03 Remains
1060 0.25 0.35 0.05 0.03 - - - - - Remains
1070 0.2 0.25 0.04 0.03 0.03 - - - - Remains
1100 0.95 0.95 0.05-0.2 0.05 - - 0.1 - - Remains
1200 1 1 0.05 0.05 - - - 0.1 0.05 Remains
3003 0.6 0.7 0.05-0.2 1.0-1.5 - - - 0.1 - Remains
5005 0.3 0.7 0.2 0.2 0.5-1.1 0.1 - 0.25 - Remains
5042 0.2 0.35 0.15 0.2--.5 3.0-4.0 0.1 - 0.25 0.1 Remains
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 - 0.1 - Remains
5083 0.4 0.4 0.1 0.4-1.0 4.0-4.9 0.05-0.25 - 0.25 - Remains
5754 0.4 0.4 0.1 0.5 2.6-3.6 0.3 - 0.2 - Remains
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 - 0.25 - Remains
6063 0.2-0.6 0.35 0.1 0.1 0.45 0.1 - 0.1 - Remains
6082 0.7-1.3 0.5 0.1 0.4-1.0 0.6-1.2 0.25 - 0.2 - Remains
7050 0.12 0.15 2.0-2.6 0.1 1.9-2.6 0.04 - 5.7-6.7 0.06 Remains
7075 0.4 0.5 1.2-2.0 0.3 2.1-2.9 0.18-0.28 - 5.1-6.1 0.2 Remains
