3003 Aluminum Stair Tread Plates 063" X 48" Seawater Resistance For Architectural

I'm Online Chat Now

3003 Aluminum Stair Tread Plates 063" X 48" Seawater Resistance For Architectural

China 3003 Aluminum Stair Tread Plates 063" X 48" Seawater Resistance For Architectural supplier
3003 Aluminum Stair Tread Plates 063" X 48" Seawater Resistance For Architectural supplier 3003 Aluminum Stair Tread Plates 063" X 48" Seawater Resistance For Architectural supplier 3003 Aluminum Stair Tread Plates 063" X 48" Seawater Resistance For Architectural supplier 3003 Aluminum Stair Tread Plates 063" X 48" Seawater Resistance For Architectural supplier 3003 Aluminum Stair Tread Plates 063" X 48" Seawater Resistance For Architectural supplier

Large Image :  3003 Aluminum Stair Tread Plates 063" X 48" Seawater Resistance For Architectural

Product Details:

Place of Origin: China
Brand Name: RuiYi Metal
Certification: CE, EN 1386 / EN 5733
Model Number: 3003 5005 5052 1100

Payment & Shipping Terms:

Minimum Order Quantity: 5 Ton
Price: US$2100-US$2790 Per Ton
Packaging Details: wooden package
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 30000 Ton Per Month
Contact Now
Detailed Product Description
Features: Seawater Resistance Aluminum: Aluminum Treadplates
Pattern: Brite Tread Plates Thickness: 3mm, 5mm Or Custom Dimensions
Application: Tank Construction, Vehicle Construction, Ship Building Sample: A4 Size Sample Collected
Alloy Grade: 3003

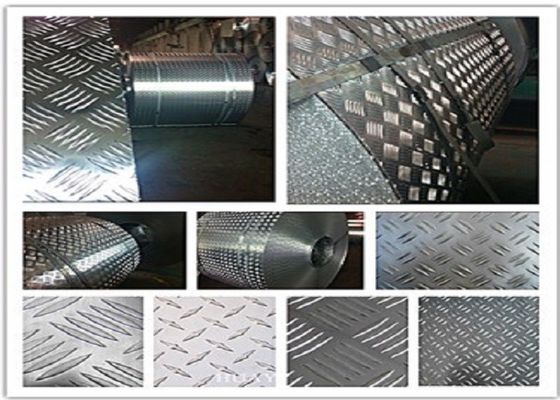

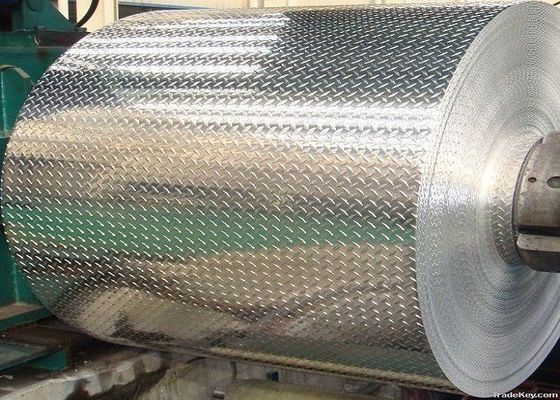

3003 Aluminum Tread Brite Plate Aluminum Treadplate .063" x 48"

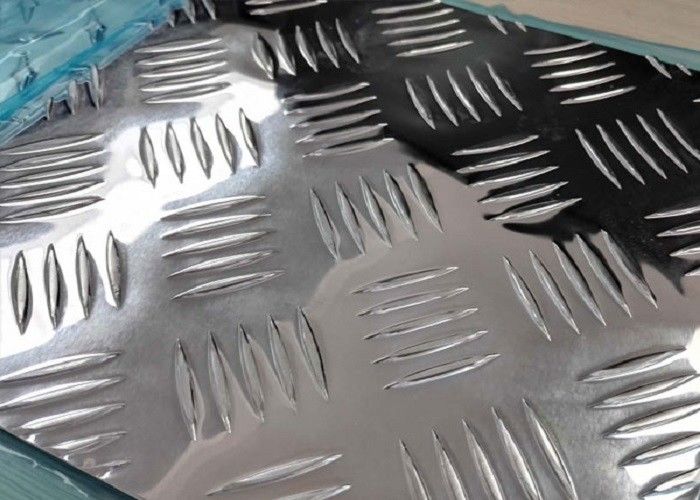

3003 H22 Diamond Tread Plate - This has the same properties as the standard 3003 aluminum with the raised tread pattern to improve traction. This is very commonly used for tool boxes, wall panels, flooring, truck bed liners and trim, garage and workshop outfitting, step plates and any other application that needs the light weight and strength of 3003 aluminum with increased traction of the raised tread pattern.



Our selection of aluminium checker plates are ideal for a number of applications in many industries, ranging from food processing to  manufacturing vehicles and marine equipment.

They are easy to clean and their raised pattern creates an anti-slip effect which lends them well to being used for flooring, stairs and walkways in industrial settings and transportation. They are also popular for cladding and protecting walls, where their decorative panel stands out.

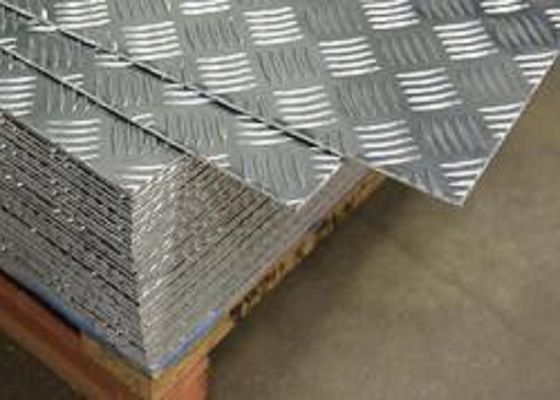

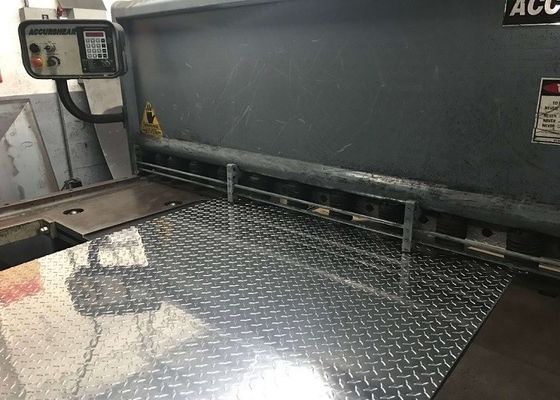

You can choose from a variety of sheet sizes and thicknesses. If you’d like a particular size, which we don’t stock as standard, we’ll cut you a plate to your specifications.

Aluminium has a range of qualities which make it incredibly versatile, such as its corrosive resistance. Plus, because it’s easy to recycle aluminium without reducing its quality, it’s an incredibly environmentally friendly material to use.

When you buy from us, you can be sure you are getting a quality product because we only source our supplies from reputable mills. What’s more, we offer incredibly competitive prices too. Contact us today to find out more.



3003 Aluminum Stair Tread Plates 063" X 48" Seawater Resistance For Architectural



Aluminum stair tread sheet, Aluminum tread Brite plate,Aluminum checker plate manufacturers, Perforated aluminum sheet china,Diamond sheet manufacturers, Aluminum tread plate manufacturers



               Chemical Analysis of aluminum alloy Plate
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Al
1050 0.25 0.4 0.05 0.05 0.05 - - 0.05 0.03 Remains
1060 0.25 0.35 0.05 0.03 - - - - - Remains
1070 0.2 0.25 0.04 0.03 0.03 - - - - Remains
1100 0.95 0.95 0.05-0.2 0.05 - - 0.1 - - Remains
1200 1 1 0.05 0.05 - - - 0.1 0.05 Remains
3003 0.6 0.7 0.05-0.2 1.0-1.5 - - - 0.1 - Remains
5005 0.3 0.7 0.2 0.2 0.5-1.1 0.1 - 0.25 - Remains
5042 0.2 0.35 0.15 0.2--.5 3.0-4.0 0.1 - 0.25 0.1 Remains
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 - 0.1 - Remains
5083 0.4 0.4 0.1 0.4-1.0 4.0-4.9 0.05-0.25 - 0.25 - Remains
5754 0.4 0.4 0.1 0.5 2.6-3.6 0.3 - 0.2 - Remains
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 - 0.25 - Remains
6063 0.2-0.6 0.35 0.1 0.1 0.45 0.1 - 0.1 - Remains
6082 0.7-1.3 0.5 0.1 0.4-1.0 0.6-1.2 0.25 - 0.2 - Remains
7050 0.12 0.15 2.0-2.6 0.1 1.9-2.6 0.04 - 5.7-6.7 0.06 Remains
7075 0.4 0.5 1.2-2.0 0.3 2.1-2.9 0.18-0.28 - 5.1-6.1 0.2 Remains



Diamond aluminium tread plate or floor plate is widely used for a variety of structural, architectural and cosmetic applications. A method has been developed to roll metal plates with an upraised "lug" pattern, providing the customer with several choices to best meet the needs of the project, with specific qualities of cleanability, impact resistance, support strength, and corrosion resistance

Bright Tread Plate(3003) is defined by its offset diamond shaped alternating single bar pattern. Common applications include ramps, toolboxes, decorative flooring or walls, vehicle running boards or kick plates, trailers, dock surfaces, and stairways.
