1050 Aluminum Sheet Aluminium Floor Plate With Thickness Customized

I'm Online Chat Now

1050 Aluminum Sheet Aluminium Floor Plate With Thickness Customized

China 1050 Aluminum Sheet Aluminium Floor Plate With Thickness Customized supplier
1050 Aluminum Sheet Aluminium Floor Plate With Thickness Customized supplier 1050 Aluminum Sheet Aluminium Floor Plate With Thickness Customized supplier

Large Image :  1050 Aluminum Sheet Aluminium Floor Plate With Thickness Customized

Product Details:

Place of Origin: China
Brand Name: RuiYi
Certification: ISO9001
Model Number: 1050

Payment & Shipping Terms:

Minimum Order Quantity: 5 Ton
Price: US$2000-US$3300 Per ton
Packaging Details: wooden pallets
Delivery Time: 25 working days
Supply Ability: 1000 Ton per month
Detailed Product Description
Material: Aluminium Alloy Name: 1050 Aluminum Plate
Patterns: Diamond, One Bar Thickness: 1.2 Mm - 7.0 Mm Or Custom
Width: 100 Mm - 1650 Mm Or Custom Length: 500 Mm - 16000 Mm Or Custom
Application: Tread Floor, Stairways
High Light:

1050 Flat Aluminum Sheet

,

Diamond Aluminium Floor Plate

,

7.0 mm Aluminium Floor Plate

wholesale Aluminum Diamond Plate 1050 manufacturer Durbar floor plate



1050 aluminum diamond plate sheet belongs to commercially pure wrought family with a purity of 99.5% Aluminum. Except Al, 0.4% of Fe is added to 1050 aluminum sheet, thus, it has high electrical conductivity. 1000 series aluminum group offers the best correction resistance compared to any alloy group, so does the 1050 aluminum sheet



Surface: mill finish, brushed, anodized, polished etc.
Standard: GB, EN, ASTM, DIN
Factory Certificate: ISO9001
Packing: seaworthy wooden pallet or customized

Loading Port: Shanghai, Ningbo, Tianjin, Qingdao


Specification of 1050 diamond plate sheets
Temper H*2,H*4,T4,T6
Thickness(mm): 1.2-7.0
Widthness(mm): 100-1650
Length(mm) : 500-16000

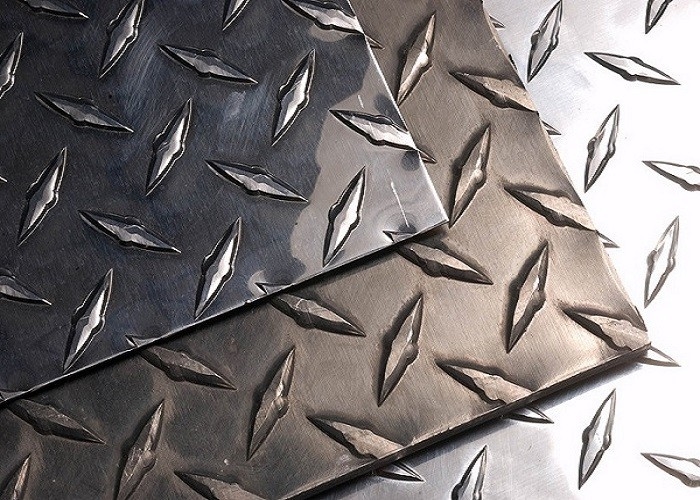

Diamond plate, also known as checker plate, tread plate and Durbar floor plate, is a type of metalstock with a regular pattern of raised diamonds or lines on one side, with the reverse side being featureless



Alloy available: 1050 1060 1100 3003, 3105, 5052, 5005, 5754 5083 5182, 6061 6063 6082, 7075, 8011…
Temper: HO, H111,H12, H14, H24,H 32, H112, T4, T6, T5,T651
Surface:Mill/Emboss/Diamond/2bar/3bars/Bright
Thickness: 0.2mm to 300mm
Width: 30mm to 2300mm
Length:1000mm to 10000mm.



Please contact us for more details



1050 Aluminum Sheet Aluminium Floor Plate With Thickness Customized



                                                      Chemical Analysis of aluminum alloy diamond plate
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Al
1050 0.25 0.4 0.05 0.05 0.05 - - 0.05 0.03 Remains
1060 0.25 0.35 0.05 0.03 - - - - - Remains
1070 0.2 0.25 0.04 0.03 0.03 - - - - Remains
1100 0.95 0.95 0.05-0.2 0.05 - - 0.1 - - Remains
1200 1 1 0.05 0.05 - - - 0.1 0.05 Remains
3003 0.6 0.7 0.05-0.2 1.0-1.5 - - - 0.1 - Remains
5005 0.3 0.7 0.2 0.2 0.5-1.1 0.1 - 0.25 - Remains
5042 0.2 0.35 0.15 0.2--.5 3.0-4.0 0.1 - 0.25 0.1 Remains
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 - 0.1 - Remains
5083 0.4 0.4 0.1 0.4-1.0 4.0-4.9 0.05-0.25 - 0.25 - Remains
5754 0.4 0.4 0.1 0.5 2.6-3.6 0.3 - 0.2 - Remains
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 - 0.25 - Remains
6063 0.2-0.6 0.35 0.1 0.1 0.45 0.1 - 0.1 - Remains
6082 0.7-1.3 0.5 0.1 0.4-1.0 0.6-1.2 0.25 - 0.2 - Remains
7050 0.12 0.15 2.0-2.6 0.1 1.9-2.6 0.04 - 5.7-6.7 0.06 Remains
7075 0.4 0.5 1.2-2.0 0.3 2.1-2.9 0.18-0.28 - 5.1-6.1 0.2 Remains
