High Strong Marine Aluminum Sheet H32 H34 5454 Aluminum Plate Length Customized

I'm Online Chat Now

High Strong Marine Aluminum Sheet H32 H34 5454 Aluminum Plate Length Customized

China High Strong Marine Aluminum Sheet H32 H34 5454 Aluminum Plate Length Customized supplier
High Strong Marine Aluminum Sheet H32 H34 5454 Aluminum Plate Length Customized supplier High Strong Marine Aluminum Sheet H32 H34 5454 Aluminum Plate Length Customized supplier

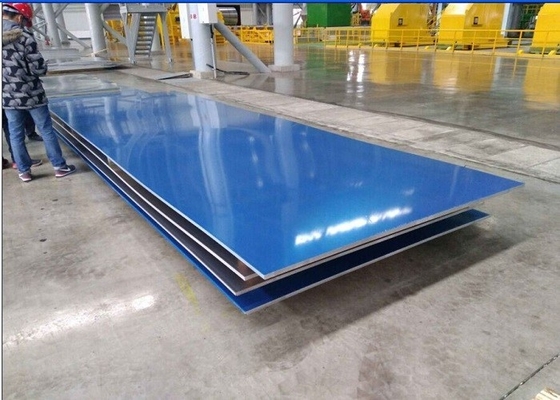

Large Image :  High Strong Marine Aluminum Sheet H32 H34 5454 Aluminum Plate Length Customized

Product Details:

Place of Origin: China
Brand Name: RUIYI
Certification: ISO9001, BV, DNV, ABS
Model Number: 5454

Payment & Shipping Terms:

Minimum Order Quantity: 5 Ton
Price: US$2100- US$3800 Per Ton
Packaging Details: wooden pallets
Delivery Time: 35 days
Supply Ability: 1000 Ton per month
Detailed Product Description
Product Name: Aluminum Marine Plate Sheet Alloy Name: 5454
Temper: H111, H116, H321, T651, H32, H34 Thickness: 2.0-300mm
Width: 30mm- 2300mm Length: 300-10000mm
Standard: AISI, ASTM, BS, DIN, GB, JIS Tensile: 350~800 MPa
Yield: 250~600 MPa Treatment: DC Or CC
Application: Pressure Vessels, Tanks, Truck Components, Marine Equipment
High Light:

aluminum deck plate


marine grade aluminum plate

Quality Strong 5456 LF10 Marine Grade Aluminum Plate sheet aluminum alloy 5456 H116 for ship deck


Marine Grade aluminum Sheet Plate has exceptional thermal conductivity and higher strength.

Marine Grade aluminum alloy plate is highly resistant to attack by seawater and industrial chemicals and is very suitable for welding.

In the Marine industry, marine grade aluminum sheet plate is the primary materials for boat hulls and cargo tanks.

Because of Excellent corrosion-resistance and weldability, together with high strength, marine grade aluminum alloy plate sheet was designed for welded structures requiring maximum joint strength and efficiency. Marine Grade aluminum metal is rated good for forming and weldability, and sufficient for conventional machining applications

RuiYi Aluminum metal supply the 5 best Marine Grade aluminum plate sheet available


5052This alloy is remarkably resistant to seawater corrosion. Its medium to high strength alloy make-up allow for good cold formability and exceptional weldability. Magnesium is the major alloying element for 5052. In the marine industry, it is the primary material for boat hulls and cargo tanks.


Of all non-heat treatable alloys, this has the highest strength. 5083 is resistant to stress, cracking and exfoliation attack under in marine corrosive conditions. It has a low density and excellent thermal conductivity. It is used across many industries, but primarily shipbuilding.

5083 aluminum sheet is used to manufacture pressure vessels and tanks, truck components, marineequipment and components, and cryogenic applications


This alloy shows great results when welded, retaining most of its strength. This factor, along with its corrosion resistance in seawater make it a very popular material choice for the marine industry. 5086 is used extensively for hulls and vessel gangways.


5086 aluminum sheet belongs to 5000 series alloy and is one of the key products of 5000 series aluminum plate. The main alloying elements of 5086 aluminum alloy are magnesium and silicon. The products have high corrosion resistance, good weld-ability and medium strength. 5086 aluminum can be used in the manufacture of sheet metal, metallurgy, and electrical enclosures for transportation vehicles and ships. Compared with other aluminum products, the anti-corrosion property of 5086 aluminum is an important reason for its wide application. Therefore, 5086 aluminum sheet plate has also become “rust-proof aluminum plate”. Aluminum-magnesium alloys and aluminum-manganese alloys are collectively referred to as rust-proof aluminum because the alloy components in between have their anti-corrosion properties



Aluminum Alloy 5456 is used as a standard application in welded deck house construction of destroyers. It is a preferred material because of the 40-45% weight reduction with no loss of stability. It can be hot worked and has good strength.


Aluminum 5456 alloy is primarily used in areas where high strength and welding parameters are required in a marine or other engineering applications. 5456 alloy has higher tensile strength than other marine alloys such as 5083 or 5086, and good corrosion resistance in a sea water environment, but not always the formability and corrosion performance of some of the other alloys

5456 aluminum alloy Mechnical Properties


Tensile Strength


Yield Strengthσ




5456 ≥420 ≥275 ≥10

6061 aluminum plate sheet
Aluminum Plate 6061 T6 | T651 to ASTM B209This alloy has good weldability and valuable mechanical properties. It is used most often because of these qualities and its strength and workability. It is used most often in deck-house structures, small boats, and bulk-heads.6061


6061 is a precipitation-hardened aluminium alloy, containing magnesium and silicon as its major alloying elements. Originally called "Alloy 61S", it was developed in 1935. It has good mechanical properties, exhibits good weldability, and is very commonly extruded (second in popularity only to 6063). It is one of the most common alloys of aluminium for general-purpose use.

It is commonly available in pre-tempered grades such as 6061-O (annealed), tempered grades such as 6061-T6 (solutionized and artificially aged) and 6061-T651 (solutionized, stress-relieved stretched and artificially aged).

5454 - H22 and H32 Sheet

Aluminium alloy 5454 has very good corrosion resistance, in particular to seawater and general environmental conditions. Strength is medium to high and similar alloy 5754 with good strength in the temperature range 65 to 170 degrees centigrade. It has a high fatigue strength. It is not suitable for complex or fine extrusions.

Applications 5454 is typically used in:
~ Road Transport Body-Building
~ Cemical and Process Plant
~ Pressure Vessels, Containers, Boilers
~ Cryogenics
~ Marine & Off-shore incl. Masts,
~ Pylons, poles & masts

Mechnical Properties 5454 h32 aluminum sheet


Tensile Strength


Yield Strengthσ




5454 AIMg3Mn A5454 EN AW-5454 ALMg2.7Mn N51 Min.215 Min.85 Min.12

High Strong Marine Aluminum Sheet H32 H34 5454 Aluminum Plate Length Customized

                                      Chemical Analysis of aluminum alloy Plate
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Al
1050 0.25 0.4 0.05 0.05 0.05 - - 0.05 0.03 Remains
1060 0.25 0.35 0.05 0.03 - - - - - Remains
1070 0.2 0.25 0.04 0.03 0.03 - - - - Remains
1100 0.95 0.95 0.05-0.2 0.05 - - 0.1 - - Remains
1200 1 1 0.05 0.05 - - - 0.1 0.05 Remains
3003 0.6 0.7 0.05-0.2 1.0-1.5 - - - 0.1 - Remains
5005 0.3 0.7 0.2 0.2 0.5-1.1 0.1 - 0.25 - Remains
5042 0.2 0.35 0.15 0.2--.5 3.0-4.0 0.1 - 0.25 0.1 Remains
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 - 0.1 - Remains
5083 0.4 0.4 0.1 0.4-1.0 4.0-4.9 0.05-0.25 - 0.25 - Remains
5754 0.4 0.4 0.1 0.5 2.6-3.6 0.3 - 0.2 - Remains
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 - 0.25 - Remains
6063 0.2-0.6 0.35 0.1 0.1 0.45 0.1 - 0.1 - Remains
6082 0.7-1.3 0.5 0.1 0.4-1.0 0.6-1.2 0.25 - 0.2 - Remains
7050 0.12 0.15 2.0-2.6 0.1 1.9-2.6 0.04 - 5.7-6.7 0.06 Remains
7075 0.4 0.5 1.2-2.0 0.3 2.1-2.9 0.18-0.28 - 5.1-6.1 0.2 Remains


XIAOXIAN RUIYI Can manufacture aluminum alloy plate sheet as

Alloy: 1050 1060 1100 3003, 3105, 5052, 5005, 5754 5083 5182, 6061 6063 6082, 7075, 8011…
Temper: HO, H111,H12, H14, H24,H 32, H112, T4, T6, T5,T651
Thickness: 0.2mm to 300mm
Width: 30mm to 2300mm
Length:1000mm to 10000mm.
