Regular Spangle Hot Dip Galvanized Steel Coil SGCC JIS G3302 Cold Rolled

I'm Online Chat Now

Regular Spangle Hot Dip Galvanized Steel Coil SGCC JIS G3302 Cold Rolled

China Regular Spangle Hot Dip Galvanized Steel Coil SGCC JIS G3302 Cold Rolled supplier
Regular Spangle Hot Dip Galvanized Steel Coil SGCC JIS G3302 Cold Rolled supplier Regular Spangle Hot Dip Galvanized Steel Coil SGCC JIS G3302 Cold Rolled supplier

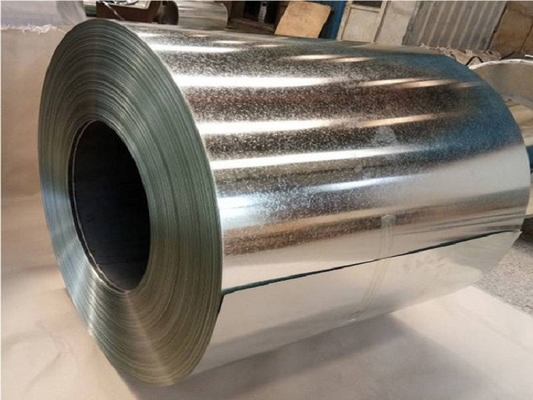

Large Image :  Regular Spangle Hot Dip Galvanized Steel Coil SGCC JIS G3302 Cold Rolled

Product Details:

Place of Origin: China
Brand Name: Baosteel, Ansteel
Certification: ISO
Model Number: dx51d, SGCC3302, SGCC,DX52D

Payment & Shipping Terms:

Minimum Order Quantity: 25Ton
Price: US$600-1300/TON
Packaging Details: standard waterproof package
Delivery Time: 35days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Detailed Product Description
Material: SGCC DX51D Grade: DX51D,SGCC
Spangle: Zero, Regular, Big Surface: Anti-finger Print
High Light:

Regular Spangle Galvanized Steel Coil

,

JIS G3302 Galvanized Steel Coil

,

Hot Dip Galvanised Steel Coil

Regular spangel hot dip galvanized steel coil manufacturers SGCC JIS G3302 Cold Rolled Galvanized Steel Coil Sheet



Galvanized Steel Sheet is defined as a carbon steel sheet coated with zinc on both sides. Galvanized Steel Coil produce galvanized steel with two main processes: continuous hot dip galvanizing and electro galvanizing.



Galvanized steel coil, immersing the thin steel plate in the molten zinc bath, and adhering a layer of zinc thin steel plate on the surface. This kind of steel plate is also made by the hot-dip method, but it is heated to about 500 °C immediately after exiting the tank to form an alloy film of zinc and iron.

Galvanized Steel Sheet is defined as a carbon steel sheet coated with zinc on both sides. Galvanized Steel Coil produce galvanized steel with two main processes: continuous hot dip galvanizing and electro galvanizing.



Hot dip galvanized steel plate DX51D,also named as hot dip galvanized steel sheet DX51D+Z and hot dip zinc coated steel plate and coil DX51D+ZF.Under EN 10142 steel standard,there are DX51D+Z,DX51D+ZF which is for bending and profiling quality,DX52D+Z,DX52+ZF which is for drawing quality,DX53+Z,DX53+ZF which is for deep drawing quality,DX54D+Z,DX54D+ZF which is for special deep drawing quality,DX56D+Z,DX56D+ZF which is for extra deep drawing quality.
When ordering us Galvanized steel plate and coils DX51D+Z and DX51D+ZF,our customer shall inform us the following requirements for steel DX51D+Z and DX51D+ZF:I.The nominal dimensions and tolerances on dimensions and shape. II. Steel name or steel number and symbol for the type of hot dip galvanized steel plate or coil.III. Number designating the nominal mass of Zinc coating.III. Letter denoting the coating finish (N,M,R).IV. Letter denoting the surface quality(A,B,C).V. Letter denoting the surface treatment(C,O,CO,S,P,U)



Specifications of Galvanized Steel Coils that We Can Provide :

1) Standard: JIS G3302 1998, ASTM A653M/A924M 2004, all according to the customer’s request
2) Grade: SGCC, SGCH,DX51D, Q195,Q235 all according to the customer’s request

3) Capacity: about 12000 tons per month
4) Thickness: from 0.13mm to 2mm, all available
5) Width: from 600mm to 1250mm, regular size:750-762mm,900-914mm,1000mm,1200mm,1219-1250mm all available
6) Coil ID: 508mm
7) Coil weight: from 2-10MT, according to the customer’s request
8) Zinc coating weight: 40g/m2-275g/m2
9) Spangle: regular spangle,big spangle, small spangle and zero spangle
10) Surface treatment: Chemical passivating, oils, passivating oils,skin passed
11) Edge: mill edge, cut edge
12) Min trial order 25 ton each thickness

Regular Spangle Hot Dip Galvanized Steel Coil SGCC JIS G3302 Cold Rolled

Applications of Our Galvanized Steel Coils :

1.Construction and building: roofing; ventilating duct; handrail; partition panel,etc.
2.Further processing: coating base plate.
3.Electric appliance: refrigerator; washing machine; recorder; microwave, etc.

The hot dip process includes passing the steel through a molten zinc bath, and the electro galvanizing process includes applying zinc through electrolytic treatment. As a result, the zinc layer is firmly adhered to the base metal through the iron-zinc bonding layer. Our hot-dip galvanized products are manufactured in accordance with specifications, and our electro-galvanized products comply with the specifications.

Galvanizing is one of the most effective and economical methods for protecting bare steel from corrosive environments. Zinc is not only a barrier between steel and the environment, but also sacrifices itself to protect the steel plate below. When two different metals are in contact and coupled with water and oxygen, sacrifice or current protection occurs. Zinc preferentially corrodes iron in steel. This protection prevents corrosion of the steel in areas not covered by zinc. Therefore, the diffusion of corrosion from cutting edges, drilling holes, etc

DX51D steel is highly ductile and flexible. It is used in complex dep-draught components and conforms to the BS EN 10346:2015 standard. Classification: Ductile and flexible structural steel.

Commodity : Galvanized steel coil /sheet
Materials Grade: SGCC , DX51D
Thickness : 0.18-7.5mm
Width : 914mm,1219mm,1000mm,1220mm,1250mm
Zinc coating : 60-275g/sqm
Surface Structure: Zero spangle / Minimized spangle / Regular spangle/ Big regular
Coil Weight : As usual 3-6t
Payment term : TT ,L/C AT SIGHT ,
Shipment : 20 feet container or bulk ship
Remark : We accept the third-party inspection ,such as ,
INSPECTORATE

Prime Hot Dip Galvanized Steel Coil price

1. Width: 600-1570mm

2. Thickness: 0.13-5.0mm

3. Grade: JIS G3302-SGCC-SGH540

EN10346-DX51D+Z,

ASTM A653-CS-B

6. Chemical Treatment: Chromated (Cr 3+, 6+)

7. Surface: Skin-pass / Non Skin-pass

8. Oil: Slight Oiled / Dry

9. Spangle: Regular / Zero

10. Zinc Coating: Z60gr/m2~Z275gr/m2 (both side total coating thickness)

11. Packing: Export Standard Packing: plastic film + water proof paper + steel plate+ packing steel strip

12. Capacity: 1,500,000MT / Year

  • Product Description:GI COIL,GI SHEET, GI PLATES DX 51D/SGCC,G350,G550
  • Product Name: Hot dip galvanized steel coil /Galvanzied steel Coil/HDGI/GI /GI Coil /GI sheet
  • Base Metal:cold rolled steel coil
  • Spangle:zero spangle, regular spangle,mini spangle,big spangle
  • Thickness: from 0.15mm to 5.0 mm
  • Width:from 600mm to 1500 mm
  • Standard:AISI,ASTM653,BS,DIN,JIS3302,GB
  • Grade:DX51D,DX52D/DX53D/DX54D, S350, S400,S450, S550, G550,SGCC,G350ST01Z,CSA,CSB,FSA,FSB,DDS
  • Zinc coating:From z60g/m2 to z600g/m2 , z60g/m2,z80g/m2,z90g/m2,z100g/m2, z120g/m2,z140g/m2, z150g/m2, z160g/m2, z180g/m2, z200g/m2,z250g/m2, z275g/m2, z300g/m2, z400g/m2, z500g/m2, z600g/m2
  • Minimum order quantity:20 ton for each size.
  • Certification:ISO9001, SGS
  • Payment terms: TT or LC at sight.
  • Application:Building field;Home appliances;Automatic Industry
  • Our Hot-dipped Galvanized products, as well as our Galvannealed (zinc-iron alloy coated) products are manufactured to ASTM A-653 specifications. Our Electrogalvanized products conform to ASTM A-879.We supply to GI, HDGI, HGI, Hot dip Galvnaized steel coil,zinc steel,steel coil, zinc steel coil, Hot dip zinc steel coil,H-D-G-I,galvanized steel coil G550, z300,galvanized steel coil G350 , z300,galvanized steel coil z275,gi coil,gi coils,galvanised steel,galvanized iron coil,galvanized coil,galvanized iron coil,galvanised steel,galvanized steel coil z275,hot dipped galvanized steel coil,galvanized steel coil,dx51d z100 galvanized steel coil,dx51d z200 galvanized steel coil, galvanized steel coil G550 z300,galvanized steel coil G350 z400,galvanized steel coil G550 z500,galvanized steel coil G350 z600,galvanized steel coil G550 z275,galvanized steel coil G550 z200,Regular Spangle Galvanized Steel Coil G350 z600,etc.
  • Galvanized steel coil, immersing the thin steel plate in the molten zinc bath, and adhering a layer of zinc thin steel plate on the surface. Galvanised steel coil is mainly produced by the continuous galvanizing process, that is, the coiled steel plate is continuously immersed in the zinc-melted plating tank to make galvanized steel plate; alloyed galvanized steel plate. This kind of steel plate is also made by the hot-dip method, but it is heated to about 500 °C immediately after exiting the tank to form an alloy film of zinc and iron. This galvanized steel coil has good paint adhesion and weldability.

    Galvanised steel coil application:

    1. Buildings And Constructions

    Floor Decks, Ceilings, Duct Work, Roofing, Siding, Sashes, Beams, Fences, Verandas, Shutters, Awnings,

    Partitions, Indoor Decorations, Pipes, Ventilators, Sheds, Culverts.

    2. Transportation

    Body Pane, Air Cleaners, Oil Filters, Fuel Tanks, Containers, Highway Barriers.

    3. Appliances

    Light Fittings, Washing Machines, Dryers, Coolers, Vending Machines, Water Heaters, Stoves, Refrigerators, Freezers, Tool Boxes.

    4. Agriculture

    Barns, Dryer Panels, Animal Houses, Hoppers. Bar Supporters, Irrigation Systems, Green Houses.
