3003 5052 Aluminium Checker Plate Sheet / Coil Aluminum Diamond Plate Sheets
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Pointer Checker Coil | Alloy Name: | 3003 5052 |
|---|---|---|---|
| Thickness: | 0.2mm -10.0mm | Temper: | H14, H22, H32, H24 |
| Technique: | CC, DC | Type: | Sheet Coil |
| Finish: | Mill, Bright, Mirror | Application: | Ramps, Truck Body, Stairways, Tool Box |
| High Light: | 3003 Aluminium Checker Plate Sheet,Checker Aluminium Flooring Sheet,5052 Aluminum Diamond Plate Sheets |
||
finest 3003 5052 Pointer Pattern Aluminum Checker coil sheet Plate manufacturer

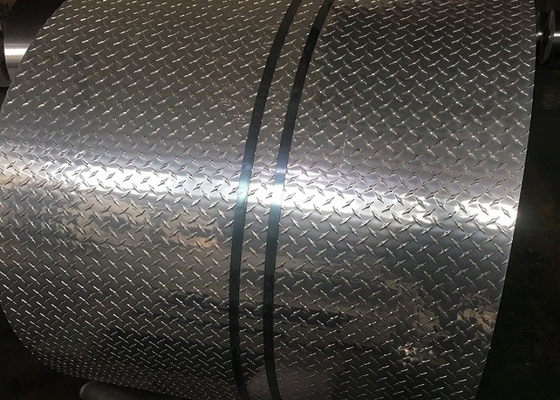

Aluminum diamond plate sheet coil, also known as aluminum checker plate, aluminium tread plate and aluminium floor plate, is a type of lightweight metal stock with a regular pattern of raised diamonds or lines on one side, with the reverse side being featureless. Aluminum diamond plates sheets coils are normally made by machine rolling, make a raised and pressed diamond design.
The added texture reduces the risk of slipping, making aluminum diamond plate sheet a solution for stairs, catwalks, walkways, and ramps in industrial settings. Its non-skid properties mean that aluminum diamond plate sheet coil is frequently used on the interior of ambulances and on the footplates of firetrucks. Additional applications include truck beds and trailer floors
Aluminum diamond plates sheets are very resistant against aggressive substances and therefore, they regarded as indestructible. Due to their durability, they are used in many different areas because they do not lose their shape or look, even after a long time. Whether industrial floors, airplanes, ships and vehicles, or stairs indoors or outdoors -Aluminum diamond plates sheets coils are a popular material which is appreciated for its excellent properties, the high resilience and the low weight. Even designers use these plates due to their decorative look
5052 3003 5754 6061 H14 aluminum checker plate for deck Floor is widely used in United states and Australia for deck and trailer use
| Aluminium tread plate | aluminum checker plate | aluminum checker coil | |||||
| Aluminium Alloy | Thickness (mm) |
Width (mm) |
Length (mm) | Temper | |
| A1050,A1050,A1070,A1100 | 1.0-10mm | 800-1900 | 1000-8000 | O,H12,H14,H16,H22,H24,H26 | |
| A3003,A3004,A3105 | 1.0-10mm | 800-1900 | 1000-8000 | O,H12,H14,H16,,H22,H24,H26 | |
| A5052,A5005,A5083,A5754 | 1.0-10mm | 800-1900 | 1000-8000 | O,H12,H14,H34,H32,H36,H111,H112 | |
| Material process | CC AND DC | ||||
| Customerize size | standard size :1000x2000mm/1200x2400/1220x2440/1250x2500/1500x3000mm | ||||
| Size can be produced as per clients requirement | |||||
| Surface | Mill finish,bright finish( five bar /two bar / one bar ) ,Anodizing,black coated | ||||
| Tread plate form | sheet or coils as per customer requirement | ||||
| Bar height | over 0.80mm | ||||
| Quality Standard | ASTM B209,EN573-1 | ||||
| MOQ per size | 2-5 tons | ||||
| Payment Terms | TT OR L/C at sight | ||||
| Delivery time | Within 25 days after receipt the lc or deposit | ||||
| Material Quality | Tension levelled ,flat ,Free of defects like oil stain,Roll Marks,Waves,Dents | ||||
| scratches etc ,A+++ quality, production process passed sgs and bv inspection | |||||
| Application | anti-slipping floor, tool box ,decoration ,truck body ,etc | ||||
| Packing | Standard export worthy wooden pallets,and standard packing is about 2 tons/pallet | ||||
| Pallet weight also can be as per client's requirement | |||||
Aluminum Checker Sheet is one of the biggest catagory of our products, the workshops has production lines for aluminium sheet , aluminum checker sheet etc.
Advanced equipment and strict management both contribute to the excellent quality of Aluminum Checker Sheet. Our main products are all kinds of cold rolling and hot rolling aluminum sheet, coil, Aluminum Checker Sheet embossed plate, aluminum foil, aluminum disc, aluminum profile, painted aluminum sheet and coil. Our products have various size choices with thickness from 0.008mm to 350mm, width from 200mm to 2300mm and length below 12m. Our products are sold to all over the world, including South America, North America, Europe, Middle-East, South-East Asia, Africa etc and used in various fields such as construction, decoration, automobile, electronic, machinery, boat construction, aeronautics&astronautics, cookware, packing etc
| Chemical Analysis of aluminum alloy Plate | ||||||||||
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Al |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | - | - | 0.05 | 0.03 | Remains |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | - | - | - | - | - | Remains |
| 1070 | 0.2 | 0.25 | 0.04 | 0.03 | 0.03 | - | - | - | - | Remains |
| 1100 | 0.95 | 0.95 | 0.05-0.2 | 0.05 | - | - | 0.1 | - | - | Remains |
| 1200 | 1 | 1 | 0.05 | 0.05 | - | - | - | 0.1 | 0.05 | Remains |
| 3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | - | - | - | 0.1 | - | Remains |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5-1.1 | 0.1 | - | 0.25 | - | Remains |
| 5042 | 0.2 | 0.35 | 0.15 | 0.2--.5 | 3.0-4.0 | 0.1 | - | 0.25 | 0.1 | Remains |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | - | 0.1 | - | Remains |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4-1.0 | 4.0-4.9 | 0.05-0.25 | - | 0.25 | - | Remains |
| 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 | 0.3 | - | 0.2 | - | Remains |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | - | 0.25 | - | Remains |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45 | 0.1 | - | 0.1 | - | Remains |
| 6082 | 0.7-1.3 | 0.5 | 0.1 | 0.4-1.0 | 0.6-1.2 | 0.25 | - | 0.2 | - | Remains |
| 7050 | 0.12 | 0.15 | 2.0-2.6 | 0.1 | 1.9-2.6 | 0.04 | - | 5.7-6.7 | 0.06 | Remains |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | - | 5.1-6.1 | 0.2 | Remains |
